Mirco-Vu – Vertex

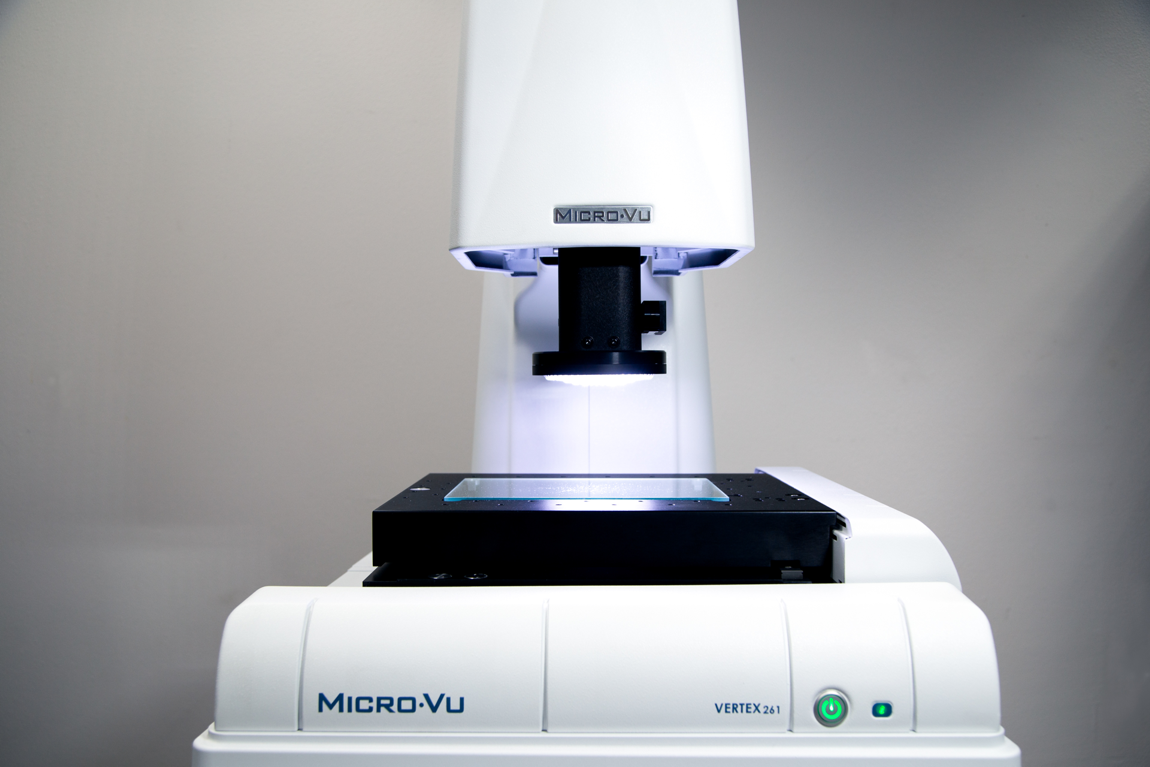

Vertex Micro-Vu Product with white overhead light shining on viewing stage.
Close up of Micro-Vu microscope objective, lens and viewing stage.

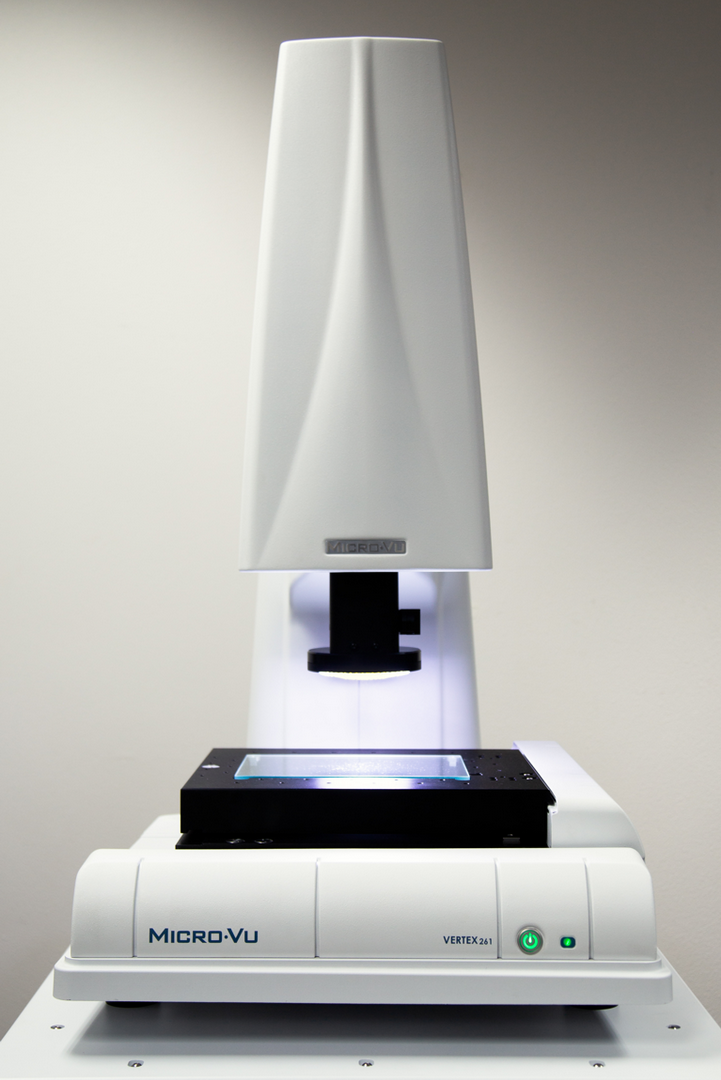

Full view of white Vertex Micro-Vu Product with microscope objective over the black viewing stage.
View Fullscreen

Specifications of Vertex

Model Measurement Capacity XY Accuracy Z Accuracy Scale Resolution Stage Capacity Machine Dimensions
Vertex 261 250x160x160 mm 2.0+L/250 2.0+L/200 1.0 µm 10 kg 755x1130x1075 mm
Vertex 341 315x315x160 mm  2.6+L/175  3.0+L/150 1.0 µm 10 kg 900x1410x1065 mm
Vertex 342 315x315x250 mm  2.6+L/175  3.0+L/100 1.0 µm 10 kg 900x1410x1245 mm

Providing precision measurement equipment and calibration services throughout Alabama, Florida, Georgia, Louisiana, Mississippi, North Carolina, South Carolina, Tennessee, & Virginia.
