Question 1

Can a part have the correct diameter but still be out of round?

Accepted Answer

Yes. A part can meet diameter requirements at selected measurement points while still having ovality, lobing, or other circular form deviations. Diameter measures size between points, while roundness evaluates the shape around the complete circumference. When circular form affects fit, sealing, or rotation, additional form measurement may be appropriate.

Question 2

What is the difference between roundness and cylindricity?

Accepted Answer

Roundness evaluates the form of an individual circular cross-section, while cylindricity evaluates the overall three-dimensional form of a cylindrical surface. Cylindricity can reveal changes along the length of the feature that may not be apparent from individual roundness or diameter measurements alone.

Question 3

What types of parts commonly need roundness measurement?

Accepted Answer

Roundness measurement may be useful for shafts, bearing surfaces, rings, rollers, valve components, precision bores, sleeves, journals, and other rotationally symmetrical parts. The need depends more on the drawing requirements and functional characteristics than on the specific type of part.

Question 4

How is roundness different from runout?

Accepted Answer

Roundness evaluates how closely a circular feature follows an ideal circle, while runout evaluates variation as a feature rotates relative to a specified datum axis. A part can therefore have acceptable roundness while still showing a runout concern if the feature is not properly aligned to the required axis.

Question 5

When should cylindricity be measured instead of only roundness?

Accepted Answer

Cylindricity may be appropriate when the form of the entire cylindrical surface matters rather than only individual cross-sections. This can be important for longer shafts, rollers, sleeves, or bores where taper, barrel shape, hourglass form, or other axial variation may influence function.

Question 6

Can a micrometer replace a roundness system?

Accepted Answer

A micrometer is useful for measuring outside diameter, but it does not provide the same complete form information as a dedicated roundness system. If the requirement is only basic diameter, a micrometer may be sufficient. If the drawing specifies roundness, cylindricity, runout, or related form characteristics, another measurement method may be needed.

Question 7

Can roundness measurement help identify machining problems?

Accepted Answer

Roundness data can help reveal form patterns that may support an investigation into machining or grinding conditions. Variations may be associated with fixturing, centering, machine condition, or other process factors. The measurement itself does not automatically identify the root cause, so the results should be evaluated with other process information.

Question 8

Does every circular part need a roundness system inspection?

Accepted Answer

No. Many circular parts can be adequately inspected with micrometers, bore gages, air gages, functional gages, or other established methods. A dedicated form system becomes more relevant when the drawing or part function requires detailed evaluation of roundness, cylindricity, runout, or related geometric characteristics.

Question 9

What should be considered when selecting a roundness system?

Accepted Answer

Important considerations can include part size and weight, measuring range, rotational accuracy, probe access, vertical travel, software capabilities, fixturing, centering and leveling, and automation needs. The system should be selected around the actual characteristics and workpieces that need to be inspected.

Question 10

When do I need roundness measurement for a precision part?

Accepted Answer

Roundness measurement may be needed when basic size checks do not provide enough information about the part’s circular form or rotational behavior. It is especially relevant when drawings specify roundness, cylindricity, runout, concentricity, coaxiality, or similar characteristics that directly affect how the component fits or functions.

QUICK LINKS

SERVICES

SERVICE AREAS

CONTACT INFO

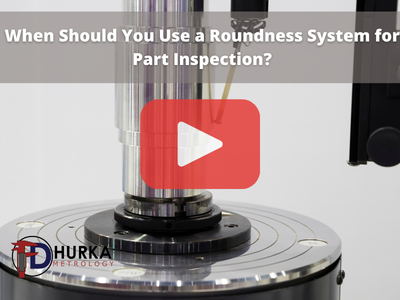

When Should You Use a Roundness System for Part Inspection?
